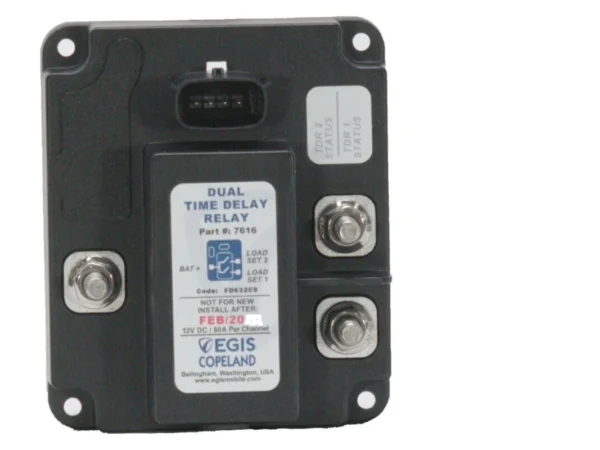

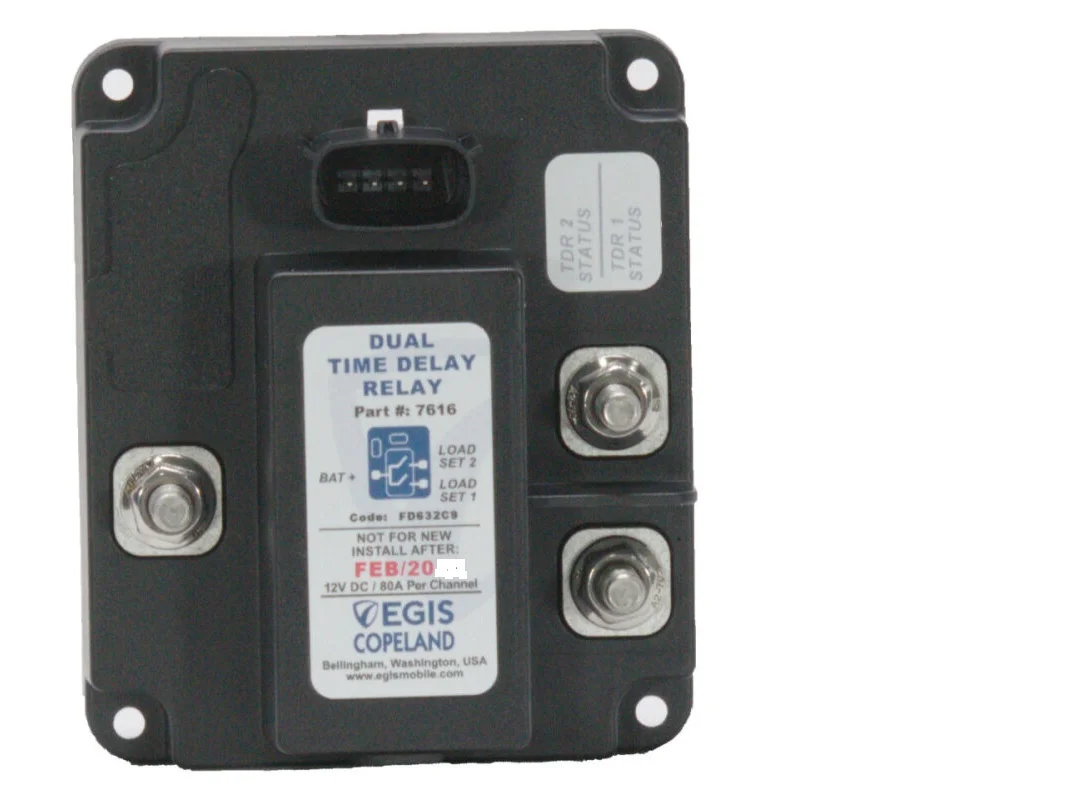

EGIS 7616 TDR Series Dual Output Time Delay Relay 2x80A 12v

$165.70

Egis Mobile Electronics
Model: 7616

Availability: 3 in stock (can be backordered)

Minus Quantity- Plus Quantity+

-

List Price: $165.70

EGIS 7616 TDR Series Dual Output Time Delay Relay 2x80A 12v

Model: 7616

  • TOP SIDE DIP SWITCHES: Accessible after installation, for programming time delay and determining active features. Protected by self-retained cover.
  • STAINLESS STEEL SELF-LOCKING HARDWARE: 100% Non-ferrous corrosion resistant materials. All attachment screws and nuts are self-locking.
  • INTEGRAL I/O CONNECTOR: Rapid and 100% correct assembly via Molex MX-150 connector eliminates poor field connections.
  • STANDARD AND OPTIONAL HARNESSES: Mating plug with 2 feet of ground and ignition wire included. Optional harnesses with additional outputs and alternate wire lengths available
  • EASY INTEGRATION WITH CT FUSE BLOCKS: Optional EasyLink bus bars provide reduces space and cost to connect TDRs with CT series Fuse Blocks.
  • EASY INTEGRATION WITH RT FUSE BLOCKS: Optional EasyLink bus bars provide reduces space and cost to connect TDRs with RT series Fuse Blocks.
  • LED DIAGNOSTICS: Provides indication of pending relay OFF event due to under/over voltage or external off trigger. Output on/off status also provided.

Specifications

Maximum current Continuous: 80 Amps DC per Output (160 A Total) Intermittent: 120 Amps DC (5 Minutes) per Output
Off State Current Draw 1.5 mA (less than 1 Amp-hr battery dissipation per month of stand-by)
Operating Specifications Voltage: 12 Vdc Nominal (8 – 18 Vdc) Temperature: -40 to 85 Deg C
Product Warranty 4 Years from date of manufacturer
Time Delay Options 5 Sec through 4 hours via Dip Switches
Environment Protection Standards Waterproof to IP66 . IP6K9K Ignition Protected to ISO 8846
Optional Features Optional Features
